The cross-in-square church

The end of Iconoclasm (the conflict regarding religious images and their removal from churches) and the development of a theology of images had profound effects on church design, in terms of the development of a standardized program of decoration and a concomitant standardized building design, both of which reflected the hierarchy of Orthodox belief. The pyramidal massing of forms, from a tall central dome to high crossing vaults, to lower corner vaults and walls, provides an ideal framework for figural imagery.

Fatih Mosque, Trilye

First seen in Trilye during the Transitional Period, the cross-in-square emerged as the standard church type following Iconoclasm.







Myrelaion church (Bodrum Mosque), c. 920, Constantinople (Istanbul) (photo: © Robert Ousterhout)

Myrelaion church (Bodrum Mosque), c. 920, Constantinople (Istanbul) (photo: © Robert Ousterhout)

Elements of a cross-in-square church, Myrelaion church (Bodrum Mosque), c. 920, Constantinople (Istanbul)

The Myrelaion, Constantinople

The Myrelaion church in Constantinople, built c. 920, achieves a balance between the articulation of the structural system and the coordination of the interior spaces. Forms cascade down from the central dome like a pyramid. Four bracing vaults extend outward in the form of a cross, set within the square of the plan below. Hence the term, “cross-in-square,” which defines this building type spatially, in three dimensions, rather than as a floor plan. Four columns support the dome and subdivide the naos into nine bays. Those in the corners are the lowest, and correspond in height with the narthex and pastophoria—the side chambers in the bema that flank the central altar area. Pilasters with half-columns on the church’s exterior correspond to internal walls and supports so one can “read” the internal structure based on its exterior articulation.

Elements of a cross-in-square church, view of the naos, Myrelaion (Bodrum Mosque), c. 920, Constantinople (Istanbul) (photo: Dosseman, CC BY-SA 4.0)

Originally constructed as the palace chapel of Romanos Lekapenos, the building was lavishly decorated and served as the emperor’s place of burial. Like many of the churches of Constantinople, the Myrelaion was converted into a mosque following the Ottoman conquest of Constantinople in 1453, and is known today as the Bodrum Mosque.

Panagia church, late 10th century, Hosios Loukas monastery, Boeotia (photo: Evan Freeman, CC BY-NC-SA 4.0)

Panagia church, late 10th century, Hosios Loukas monastery, Boeotia (photo: Evan Freeman, CC BY-NC-SA 4.0)

The spread of the cross-in-square

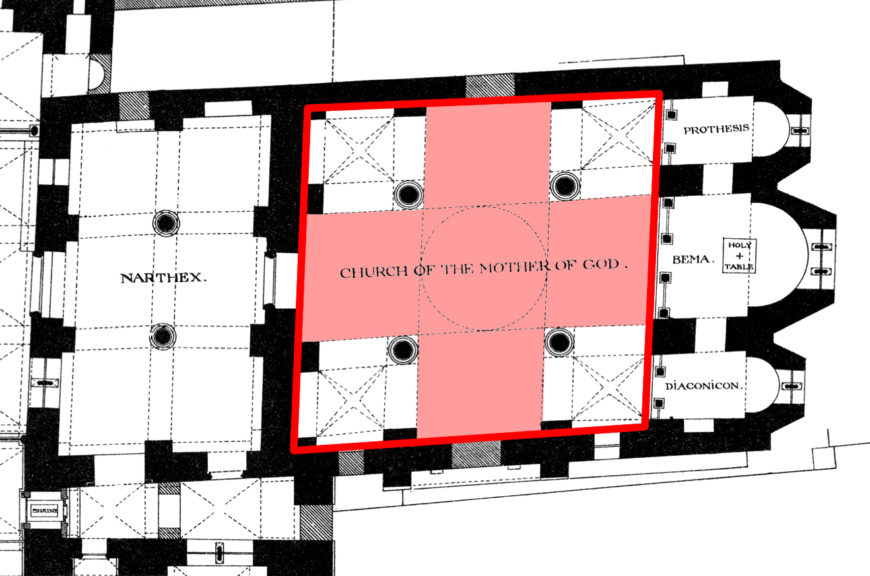

Plan of the Panagia church (highlighting the dome, bracing vaults, and square naos), late 10th century, Hosios Loukas monastery, Boeotia

The cross-in-square type is widespread, first appearing in Greece in the late tenth century at the Panagia church at Hosios Loukas monastery. While neither this nor the Myrelaion preserves internal decoration, the Panagia ton Chalkeon in Thessaloniki, dated by inscription to 1026, and the rock-cut Karanlık Kilise at Göreme, dated to the eleventh century, provide evidence of the developed interior cycle (view plan of Karanlık Kilise Monastery). The same building type appeared in central Anatolia, southern Italy, the Balkans, and Russia, with slight variations, and served a variety of functions, as palatial, domestic, monastic, parish, or funerary churches. The common denominator in all was the small scale appropriate to small groups of worshippers or private use.

Karanlık Kilise, 11th century, Göreme, Cappadocia (photo: Octavio L, CC BY-SA 3.0)

Karanlık Kilise, 11th century, Göreme, Cappadocia (photo: Octavio L, CC BY-SA 3.0)

Old Metropolis, reconstructed plan, 11th century, Verroia (image © Robert Ousterhout).

Old Metropolis basilica, reconstructed plan, 11th century, Verroia (© Robert Ousterhout).

The persistence of the basilica

With the revival of the empire beginning in the second half of the ninth century following the tumultuous Transitional Period, new church construction occurred most often as the result of private patronage. Variations in church design abound during the Middle Byzantine period (843-1204): basilicas and domed basilicas continued to appear, notably when larger interior spaces were required, but in some regions, such as Kastoria in northern Greece, small basilicas persist. Occasionally, as with the ruined, three-aisled basilica at Servia and the Old Metropolis at Verroia (both in Northern Greece), there was not a suitable Early Christian basilica to serve as the cathedral, so a basilica was built in the Middle Byzantine period.

Annotated plan and isometric view of katholikon church (octagon highlighted), Hosios Loukas monastery, 11th century, Boeotia

View of dome and squinches, katholikon church, 11th century, Hosios Loukas monastery, Boeotia (photo: Evan Freeman, CC BY-NC-SA 4.0)

View of dome, squinches, and octagon, katholikon church, 11th century, Hosios Loukas monastery, Boeotia (photo: Evan Freeman, CC BY-NC-SA 4.0) (view annotated image).

The octagon-domed church

If the limited scale of the cross-in-square church seemed too small or too plain, the octagon-domed church provided more elaborated interior designs and complex surfaces for mosaic decoration, while providing eight points of support for a larger dome. With squinches providing the transition to the dome, the design may be derived from Arab or Caucasian models. The eleventh-century katholika of Hosios Loukas monastery, of Nea Moni on Chios, and the destroyed church of H. Georgios ton Manganon in Constantinople suggest the degree of variations possible.

The katholikon church at Hosios Loukas

At Hosios Loukas, the tall naos is extended by transept arms and is enveloped by galleries and annexed chapels on two levels; the hemispherical dome, rises above squinches. Lavishly decorated with marble and mosaic, the circumstances of its construction remain unclear (view plan and isometric view of the Panagia and katholikon churches at Hosios Loukas monastery).

Left: view of Nea Moni from the west (photo: <a class="nolightbox" href="https://commons.wikimedia.org/w/index.php?title=File:ΝΕΑ_ΜΟΝΗ_ΣΤΑ_ΧΙΟΝΙΑ.jpg&amp;oldid=391721734#/media/File:ΝΕΑ_ΜΟΝΗ_ΣΤΑ_ΧΙΟΝΙΑ.jpg" target="_blank" rel="noopener noreferrer">FLIOUKAS</a>, CC BY-SA 4.0); right: plan of katholikon of Nea Moni, Chios, 11th century (© Robert Ousterhout)

Left: view of Nea Moni from the west (photo: FLIOUKAS, CC BY-SA 4.0); right: plan of katholikon of Nea Moni, Chios, 11th century (© Robert Ousterhout)

Mosaics decorate the octaconch beneath the dome (with marble revetment lower down), Nea Moni, Chios, 11th century (photo: <a class="nolightbox" href="https://commons.wikimedia.org/wiki/File:Εσωτερικό_-_Νέα_Μονή_Χίου.jpg" target="_blank" rel="noopener noreferrer">Meltedrainbow</a>, CC BY-SA 4.0)

Mosaics decorate the octaconch beneath the dome (with marble revetment lower down), Nea Moni, Chios, 11th century (photo: Meltedrainbow, CC BY-SA 4.0)

Nea Moni on the island of Chios

At Nea Moni (“new monastery”) on the Greek island of Chios, the footprint of a cross-in-square church is maintained, along with low vaults to the tripartite sanctuary (bema) and narthex, while the naos appears tower-like, its dome originally nine-sided, rising above a tall drum and an octaconch at the transitional level. The unusual design and lavish decoration with marbles and mosaics may be the result of imperial patronage by Constantine IX Monomachos and the work of artisans from Constantinople.

H. Georgios ton Manganon in Constantinople

Also attributed to the patronage of Monomachos—and also lavishly decorated—the church of H. Georgios ton Manganon in Constantinople (now destroyed) seems to have had an octagon-domed design, with the dome raised above reentrant piers that curved at the corners of the naos, which was enveloped by an ambulatory. Known from descriptions and limited excavations, however, details of its elevation remain uncertain.

Cross-in-square and atrophied Greek-cross plans compared (adapted from plans © Robert Ousterhout)

Cross-in-square and atrophied Greek-cross plans compared (adapted from plans © Robert Ousterhout)

Sv. Nikola (heavily restored), 12th century, Kuršumlija (photo: CrniBombarder!!!, CC BY-SA 3.0)

Sv. Nikola (heavily restored), 12th century, Kuršumlija (photo: CrniBombarder!!!, CC BY-SA 3.0)

The atrophied Greek-cross and other plans

For churches of scale larger than a cross-in-square design could maintain, the cross-domed format could be adapted to provide a more stable structural system and a more unified interior space, while allowing for a larger dome. Following the models developed in the Transitional Period, the design is again popularized in the twelfth century, as occurred at the katholikon of the Chora monastery. Archaeology suggests that a cross-in-square church of the eleventh century was rebuilt in the early twelfth century on an atrophied Greek-cross planThis design was imitated from Bithynia (H. Aberkios at Elegmi) to Serbia (Sv. Nikola at Kursumlija) (view plans of these atrophied Greek-cross churches). Such atrophied Greek-cross churches differ from cross-in-square plans because of their larger domes, smaller crossarms, and lack of four supporting columns.

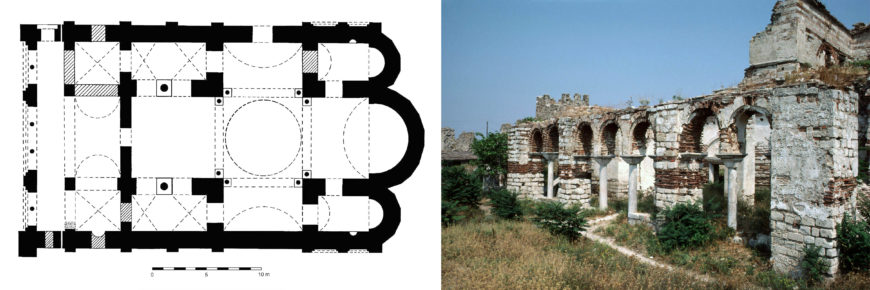

Fatih Camii, plan and view of west façade, 12th century, Enez (Ainos) (plan and photo: © Robert Ousterhout)

Fatih Camii, plan and view of west façade, 12th century, Enez (Ainos) (plan and photo: © Robert Ousterhout)

Domed basilicas also reappear in the same period, as at the Fatih Camii at Enez or the Gül Mosque in Constantinople. Ambulatory-planned churches, such as the twelfth-century Theotokos Pammakaristos in Constantinople, may have been intended to provide additional spaces for burial in close proximity to the naos.

Ambulatory plan, Theotokos Pammakaristos (Fethiye Mosque), hypothetical elevation and plan of the twelfth-century church and its cistern (shown in gray on the plan), Constantinople (Istanbul) (adapted from plan © Robert Ousterhout)

Ambulatory plan, Theotokos Pammakaristos (Fethiye Mosque), hypothetical elevation and plan of the twelfth-century church and its cistern (shown in gray on the plan), Constantinople (Istanbul) (adapted from plan © Robert Ousterhout)

Katholikon (three apses higlighted in plan), Megisti Lavra, begun in 962, Mount Athos (photo: Evan Freeman, CC BY-NC-SA 4.0, plan © Robert Ousterhout)

Triconch churches

The katholikon at Megisti Lavra on Mount Athos

Triconch churches appear in the monastic environment of Mount Athos (a mountain and peninsula in northeastern Greece and an important center of Eastern Orthodox monasticism), with the addition of lateral apses—i.e. apses on the sides of the church—to a standard cross-in-square plan. The lateral apses, called choroi, provided a setting for the choirs of monks who sang the liturgy. It is unclear if the new church type emerged by means of later additions or modifications, but the new feature clearly responded to the requirements of the monastic service. At Megisti Lavra, the katholikon begun in 962 was expanded gradually, with the addition of lateral apses to the naos, domed subsidiary chapels flanking the narthex, an outer narthex, and a phiale (font) (view plan of Megisti Lavra Monastery).

Eighteenth-century plans of the katholikon and the trapeza with ceremonies in progress, Megisti Lavra, Mount Athos (V. G. Barskii, 1885–87)

Eighteenth-century plans of the katholikon and the trapeza with ceremonies in progress, Megisti Lavra, Mount Athos (V. G. Barskii, 1885–87)

At Vatopedi and elsewhere on Mount Athos, the katholika appear to have triconch plans from the inception.

Choros with windows in upper left, katholikon, Vatopedi monastery, Mount Athos (photo: Saint-Petersburg Theological Academy, CC BY-ND 2.0)

Hypothetical reconstruction (top) and plan (bottom), Theotokos tou Libos, 907, Constantinople (adapted from Megaw, “The Original Form of the Theotokos Church of Constantine Lips”)

Greater complexity

Theotokos tou Libos, Constantinople

Annexed chapels and more complex plans appear regularly in the Middle Byzantine period. The monastic church of the Theotokos tou Libos in Constantinople, built c. 907 as a cross-in-square church similar in scale and detail to the Myrelaion, included six subsidiary chapels in its original design, with two flanking the bema and four tiny, possibly domed chapels on the gallery level. The katholikon of Hosios Loukas has eight chapels, organized on two levels. These subsidiary spaces have been interpreted as settings for private devotions, or possibly private liturgies, or as primarily commemorative spaces, but they are clearly integrated into the overall design of the building. Often a single chapel is set to one side of the building, as at Sv. Nikola at Kuršumlija.
