Middle Byzantine secular architecture and urban planning


Periods of Byzantine history

Early Byzantine (including Iconoclasm) c. 330 – 843
Middle Byzantine c. 843 – 1204
The Fourth Crusade & Latin Empire 1204 – 1261
Late Byzantine 1261 – 1453
Post-Byzantine after 1453

Evidence of secular architecture and urban planning in Middle Byzantium (underlying map © Google)

Evidence of secular architecture and urban planning in Middle Byzantium (underlying map © Google)

Ruralization

Although churches such as Hagia Sophia are among Byzantium’s best known architecture, the Byzantines also built cities, palaces, houses, and public infrastructure such as aqueducts. Yet secular architecture can often be difficult to assess in the Middle Byzantine period (843 – 1204). After the sixth century, the Byzantine Empire underwent a process of ruralization, as large centers were depopulated or abandoned, with a demographic shift to the countryside. Often the inhabited area of a city was reduced to its fortified acropolis; at Ankara, Sardis, and Corinth, for example, the remainder of the ancient city was virtually abandoned. Even Constantinople—the  capital of the Byzantine Empire—witnessed a cultural break in this period. Following a plague in 747, Constantine V resettled peasants from Greece and the Aegean Islands in the capital. Portions of the city fell into ruin, with public services neglected.

Imagined view of Sparta, known as Lacedemonia during the Byzantine era, <a class="nolightbox" href="https://commons.wikimedia.org/wiki/File:Nuremberg_chronicles_-_f_28v.png" target="_blank" rel="noopener noreferrer">Nuremberg Chronicle</a>, 1493

Imagined view of Sparta, known as Lacedemonia during the Byzantine era, Nuremberg Chronicle, 1493

Urban revivals

A cultural revival began after the middle of the eighth century (after the resolution of the Iconoclastic controversy), but cities never achieved their former prominence. As Byzantine society became more private and inward-turning, the home and family became the dominant social focus, with public architecture limited almost exclusively to defense.

Old cities, new names

Often cities that had been abandoned were resettled with new names, the older ones forgotten: Abdera became Polystylon; Sparta became Lacedaemonia. Settlements that were not abandoned shrank, with smaller circuits of fortification; texts refer to these as kastra rather than as poleis.

Monemvasia, c. 1690 (Frederik de Wit)

Monemvasia, c. 1690 (Frederik de Wit)

Monemvasia today (photo: Mia Battaglia, CC BY-NC-ND 2.0)

Monemvasia today (photo: Mia Battaglia, CC BY-NC-ND 2.0)

New towns

The few new towns of the period developed because of their strategic or protected locations, as at Monemvasia. In Cappadocia, numerous new agricultural settlements date from the tenth and eleventh centuries, cut into the soft volcanic rock formations, but these are no more than villages. View a plan of the settlement at Çanlı Kilise near Akhisar in Cappadocia.

Ephesus, view looking eastward, with the ruins of the Temple of Artemis in the foreground and the hill of Ayasoluk with the Church of St. John in the distance (© Robert Ousterhout)

Ephesus, view looking eastward, with the ruins of the Temple of Artemis in the foreground and the hill of Ayasoluk with the Church of St. John in the distance (© Robert Ousterhout)

Map of İznik showing the walls, cardo, and decumanus of Nicaea (adapted from Google earth in 10.10.2017) (Arzu Ispalar Çahantimur and Gözde Kırlı Özer, "Space and Time Travelers Exploring Cultural Identity of the City," CC BY 3.0)

Map of İznik showing the walls, cardo, and decumanus of Nicaea (adapted from Google earth in 10.10.2017) (Arzu Ispalar Çahantimur and Gözde Kırlı Özer, “Space and Time Travelers Exploring Cultural Identity of the City,” CC BY 3.0)

Reconfiguring ancient cities

At Ephesus, the ancient center was gradually abandoned in favor of the more easily defended hill of Ayasoluk, several kilometers inland, fortified around the church of St. John. At Sparta, the ancient acropolis was reinhabited beginning in the ninth century. In many older sites, the main streets continued to function, but new patterns of growth emerged within the urban rubble.

At Nicaea (modern İznik), both the cardo and decumanus of the ancient city continued to be used (the cardo running north-south and the decumanus running east-west), but this is an almost unique example. New areas of settlement were characterized by growth in an ad hoc manner; streets appeared as the area between private properties, unpaved and unmaintained, as at Corinth and Athens.

Excavations of Byzantine houses, Athens (photo and plan © Robert Ousterhout)

Excavations of Byzantine houses, Athens (photo and plan © Robert Ousterhout)

Public spaces

Similarly, public spaces were abandoned and their functions replaced by streets of mixed use, with shops, workshops, and residences together. Market fairs and other large gatherings took place outside the walls, as for example the festival of St. John at Ephesus. Conversely, some activities that would have been extramural in ancient times moved within the confines of the medieval city; for example, within Constantinople, large areas were devoted to vegetable gardens. More significantly, cemeteries gradually penetrated the city, many associated with religious foundations.

Aqueduct of Valens, 4th century, supplied water to Constantinople (photo: Laima Gūtmane CC BY-SA 3.0)

Aqueduct of Valens, 4th century, supplied water to Constantinople (photo: Laima Gūtmane CC BY-SA 3.0)

Water supplies

Another element necessary to the city was water. With the declining populations, most aqueducts fell into disrepair. The aqueducts supplying Constantinople and Thessaloniki were maintained only with difficulty. A few new aqueducts were constructed, as at Thebes, and an extensive hydraulic system was developed in some parts of Cappadocia; at Corinth and Bursa, natural springs provided water. In most cases, private systems developed, with wells or cisterns to collect rainwater.

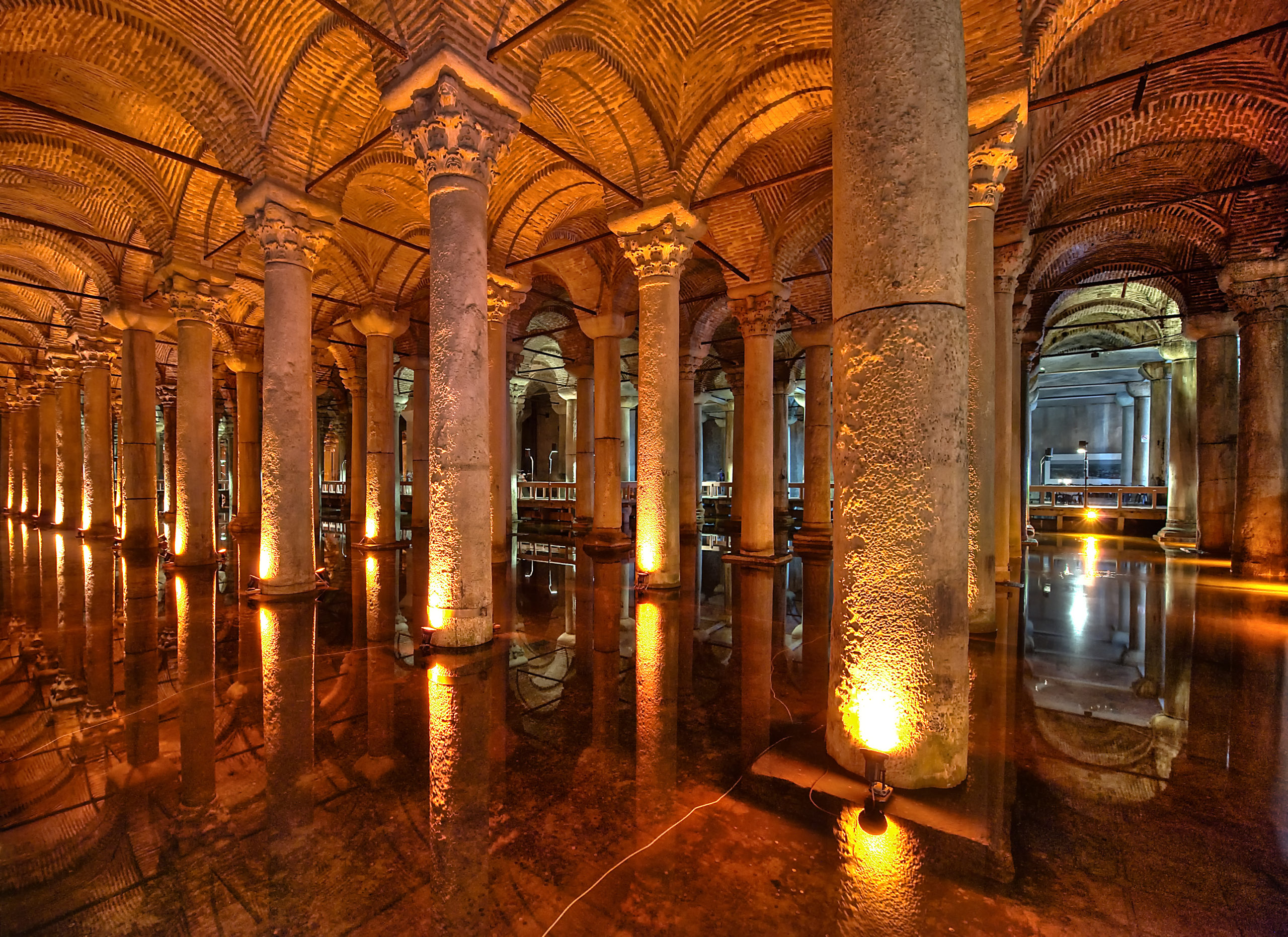

Basilica Cistern, 6th century, Constantinople (Istanbul) (photo: Clint, CC BY-NC-ND 2.0)

Basilica Cistern, 6th century, Constantinople (Istanbul) (photo: Clint, CC BY-NC-ND 2.0)

Constantinople

Throughout the period, Constantinople remained unique in its urban character, appreciated by contemporaries for its wealth, its size, its paved streets, and the presence of the imperial court. By the twelfth century, its population may have been as high as 400,000.

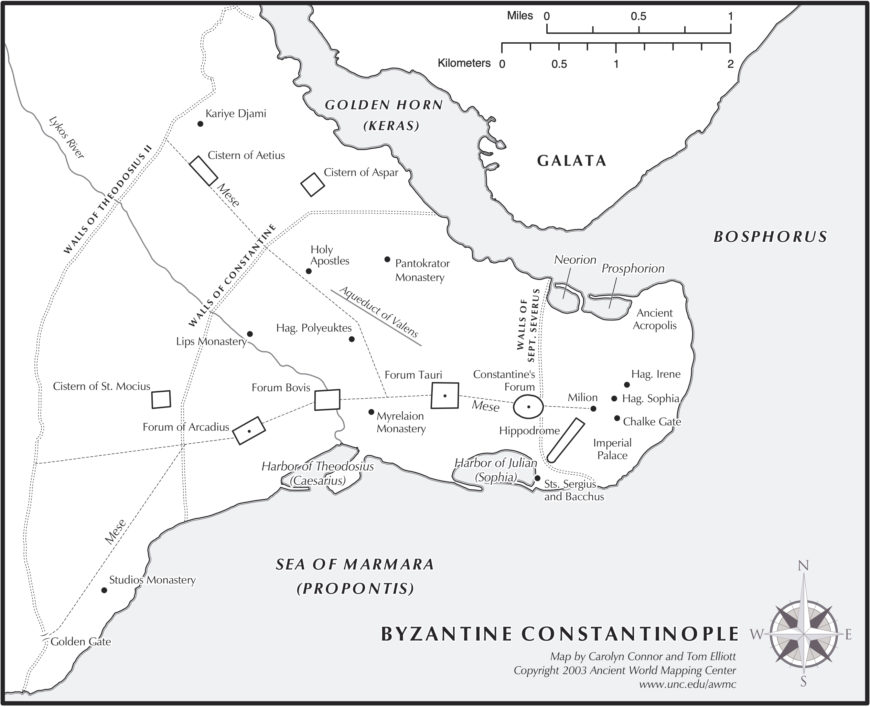

Constantinople (map: Carolyn Connor and Tom Elliot, Ancient World Mapping Center, CC BY-NC 3.0)

The city also retained many of the great monuments of Late Antiquity; its spacious main streets, its forums bedecked with triumphal monuments, its basilicas and public buildings formed the backbone of the medieval city, and they continued to function throughout the Middle Byzantine period—if perhaps in a diminished capacity.

Triumph of Emperor Basil II in the Madrid Skylitzes, between 1126 and 1150? (Biblioteca Nacional de España, Vitro. 26-2, fol. 183r)

Triumph of Emperor Basil II in the Madrid Skylitzes, between 1126 and 1150? (Biblioteca Nacional de España, Vitro. 26-2, fol. 183r)

Reconstructed plan of the Boukoleon Palace, Constantinople (© Robert Ousterhout)

Reconstructed plan of the Boukoleon Palace, Constantinople (© Robert Ousterhout)

Enough grandeur survived for emperors of the ninth and tenth centuries to stage imperial triumphs in the antique manner. The so-called Boukoleon Palace represents the reduced core of the Great Palace (originally begun by Constantine the Great and subsequently expanded and rebuilt), enclosed by a fortification wall, added by Nikephoros Phokas in the tenth century. By the twelfth century, the Blachernae Palace, located at the northern corner of the city, had become the primary imperial residence.

New construction of the Middle Byzantine period was privately financed and controlled, and what might be regarded as public buildings—baths, docks, warehouses, hospitals, and orphanages—were frequently controlled by the monasteries. Moreover, new buildings were often of wood rather than of stone.

Boukoleon Palace, sea façade, view of the great hall, enclosed by fortification wall built by Nikephoros Phokas in the 10th century, Constantinople (photo: Evan Freeman, CC BY-NC-SA 4.0)

Boukoleon Palace, sea façade, view of the great hall, enclosed by fortification wall built by Nikephoros Phokas in the 10th century, Constantinople (Istanbul) (photo: Evan Freeman, CC BY-NC-SA 4.0)

Reconstructed plan of a rural Byzantine house, Armatova, Elis, Greece (Evan Freeman, redrawn after C. Bouras, CC BY-NC-SA 4.0)

Reconstructed plan of a rural Byzantine house, Armatova, Elis, Greece (Evan Freeman, redrawn after C. Bouras, CC BY-NC-SA 4.0)

Domestic Architecture

Middle Byzantine domestic architecture is poorly preserved. A simple country house was excavated at Armatova in Elis, composed of small rectangular rooms and a porch. At Corinth, excavated medieval houses have courtyards with wells and ovens surrounded by rooms and storerooms. Although offering a small degree of comfort and efficiency, virtually no concern for aesthetics is evident. In Constantinople, multi-storied residences like Roman insulae still existed. In the twelfth century, John Tzetzes describes living in a three-storied tenement, with a priest, his children and pigs above him, and hay stored by a farmer on the ground floor.

Myrelaion church (Bodrum Mosque), c. 920, Constantinople (Istanbul) (photo: © Robert Ousterhout)

Myrelaion church (Bodrum Mosque), c. 920, Constantinople (Istanbul) (photo: © Robert Ousterhout)

At the Myrelaion in Constantinople, the foundations of a huge rotunda from a Late Antique palace were filled with a colonnaded cistern (for water storage) to form a level platform for the considerably smaller tenth-century Palace of Romanos Lekapenos, pi-shaped in plan, with a portico along the main facade, and with a chapel off to one side (which survives as the Bodrum Mosque today). Later, the complex was converted into a monastery.

Although known only from excavated remains, such urban forms may be reflected in the rock-cut courtyard dwellings of Cappadocia, such as those found at Çanlı Kilise near Akhisar, which similarly have the rooms organized around a courtyard, a porticoed façade, and a chapel. Often the main formal rooms were given special articulation; other rooms may be identified as the kitchen, storerooms, cisterns, dovecotes, and stables.

Remains of a rock-cut courtyard dwelling at Çanlı Kilise, Cappadocia, flourished 10th-11th centuries (photo: Evan Freeman, CC BY-NC-SA 4.0)

Remains of a rock-cut courtyard dwelling at Çanlı Kilise, Cappadocia, flourished 10th-11th centuries (photo: Evan Freeman, CC BY-NC-SA 4.0)

Private estates grew in size and prominence, and by the twelfth century, the great, privately endowed monasteries and the mansions of the wealthy had become the distinguishing landmarks of the city. By the eleventh century, the monumentality of early forms was commonly replaced by complexity. None of these great oikoi, with their sprawling mansions, courtyards, chapels, and gardens, survives, but their appearance is suggested a document of 1203 describing the Palace of Botaniates, which included gatehouses, two churches, courtyards, reception halls, dining halls, residential units, terraces, pavilions, stables, a granary, vaulted substructures, cisterns, a bath complex, and rental properties. Wealthy estates in the countryside may have been fortified, such as that described in Digenes Akritas, which was surrounded by gardens and defended by walls and towers, and also included a bathhouse and a church.
